Fujian Wanan Yellow Color High Gloss Insulating Powder Coating Powder-M

Fujian Wanan Yellow Color High Gloss Insulating Powder Coating Powder-M

The way of powder coating works is that powder of a certain color is sprayed onto the metal surface, which holds an electrical charge. The charge causes the powder to adhere to the surface, and it is baked on once the spraying is done.



  • Brand :

    Wanan
  • MOQ :

    150 KGS
  • Shelf time :

    6 Months
  • Lead time :

    7 days-15 days
  • Place of Origin :

    Fujian,China
  • Main Raw Material :

    Epoxy Resin And Polyester Resin

Yellow Color High Gloss Insulating Powder Coating Powder

Powder coating is a term used to describe a particular finish or base. It starts out as a fine powder. This powder consists of finely ground particles of pigment and polymer resin. After application to a surface, the powder is chemically altered with heat to create a finishing film.



Quick Details



Item# S37.4.1812069

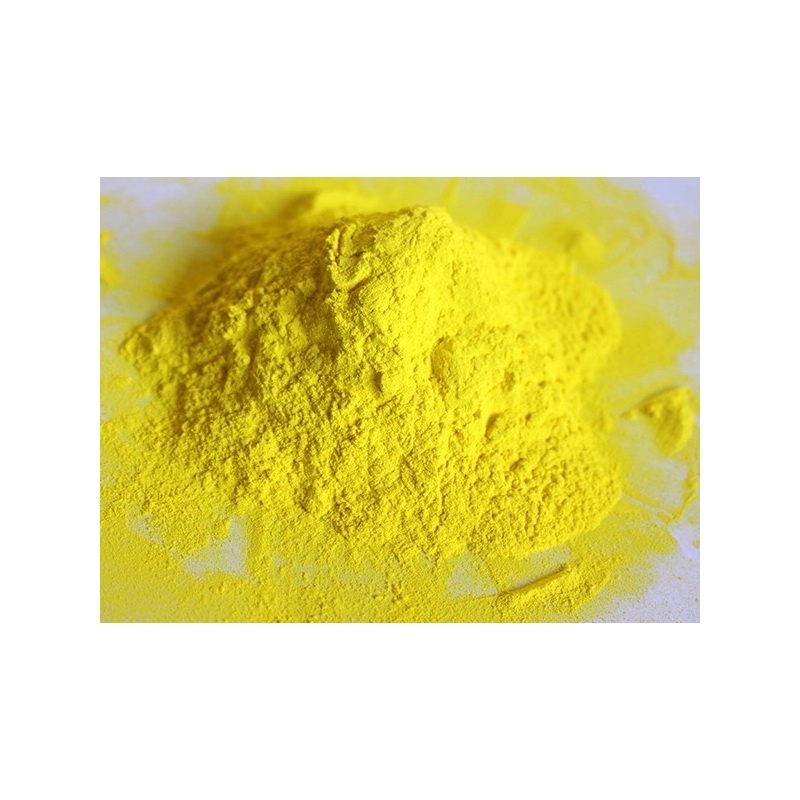

Appearance before coating Yellow color loose powder
Appearance after coating Yellow color high gloss film
Film Thickness >100μm
Curing Condition 190℃(Object temperature) for 15 minutes
Impact Resistance Direct & Indirect >25kg/cm
Pencil Hardness F
Flexibility 4mm Mandrel
Salt Spray Test 5% NaCl Solution for 500 hours - No change
Acid Resistance 3% HCL for 240 hours test - No change
Alkali Resistance 5% NaOH for 240 hours test - No change
Dielectric Strength
CAN/CSA-C22.2 No.68-92) 2.5KV/min
Package Carton packing with PE bag,net weight 20kg or 25kg each carton.



High Gloss Insulating Powder Coating Powder



APPLICATIONS



Powder coatings have replaced solvent-based coatings and have found the greatest commercial success in applications such as automotive, appliances, outdoor furniture, lawn and garden products, architectural and building / construction, electrical / electronics, non-metallic products such as MDF board,MDF furniture and much more.





Benefits of Powder Coating






Powder coating is a very popular way to paint parts, and there are numerous finishes and colors available. powder coating provides a range of advantages over conventional painting methods, and it yields a durable, attractive finish.

There have 7 most obvious benefits of powder coating:

1.Efficiency

2.Low Cost

3.Durability

4.Variety

5.Maintenance

6.Quality

7.Environmental Friendly



WHY CHOOSE WANAN



Fujian WANAN Industry Group Co.,Ltd. is a high-tech enterprise which specializing in manufacturing thermosetting powder coating.

Founded in January of 1996 and after more than 27 years developing,we already became one of the top manufacturer which focusing on research,developing manufacturing and sales.

Our powder coatings had gained a great reputations from both home and abroad,we have approved by ISO 9001:2015,ISO 14001:2015,ISO 45001:2018,IATF 16949,CNAS and QUALITOAT.

Our brand stable quality,well coating ability,strong impact resistance,strong adhesion,perfect weather resistance property and large painting area.WANAN brand keep Top 3 in China since 1996.







QUALITY CONTROL





There are certain specific tests for powder coatings and for the cured coating. Once powder coating is delivered to the end user, it can’t be adjusted like a solvent based paint. Therefore extremely strict quality control must be exercised by the powder manufacturer during all stages of the manufacturing process.





FAQ



Q1: Are you factory or trading company?

A1: We are professional powder coating factory with more than 600 employees.



Q2: Where is the location in China?

A2: Our company headquarter is located in ZhangZhou city,Fujian province,China,30mins distance to Xiamen port.



Q3: Can you provide samples for quality checking before place order?

A: Samples are avaliable upon request,but the shipping cost will be bear by customer.



Q4: Is there a discount price?

A: Of course,bigger quantity will be bigger discount.



Q5: How about leadtime?

A:Estimate lead time: About 7-15 working days after payment confirmed.



Q6:Are there powders for interior or exterior use?

A:It is depend on client's requirement.



Q7:How many colors do you have?

A:RAL,Pantone or any customization color is available.



Q8:Do you have any available powder coating stock?

A:Yes we stock more than 400 of popular colors or contact us to order specific color that you need.



Q9:How should I store powder coating well?

A:Store at room temperature(30℃),keep cool,dry and away from direct sunlight.
